Reconstruction of Saint-Malo port lock

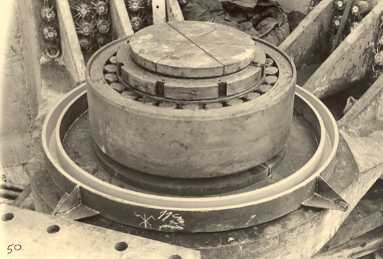

Upper rolling bearing of the downstream door - Summer 1950

Home

Georges Jamet

Lock

1948-1949

1950

PreviousNext

Click to display the planThe pivots of the downstream doors are fixed by cables tightened through the concrete between the pivot and another end. These cables are fixed by cones.

See also the installation of these cables for the south door (cables of the upper pivot) and for the north door (cables of the lower and upper pivot).

See also a global view of the axles of the downstream doors, north and south.
