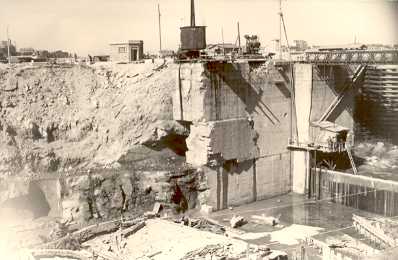

Location of the north upstream gate. Note in the middle of the photo the aqueduct for transferring water from the basin to the lock. It was blown up by the Germans, removing part of the quay.
At the bottom right, halfway up, we see one of the pumping stations.
